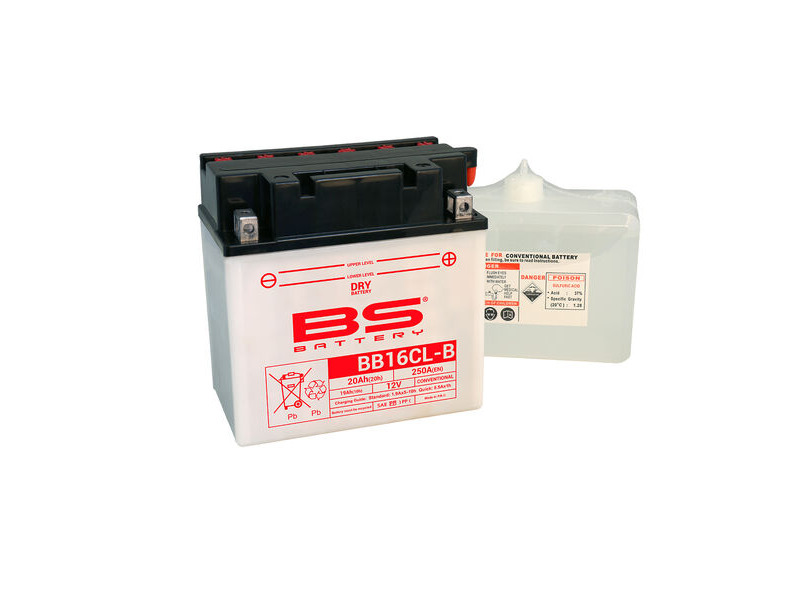

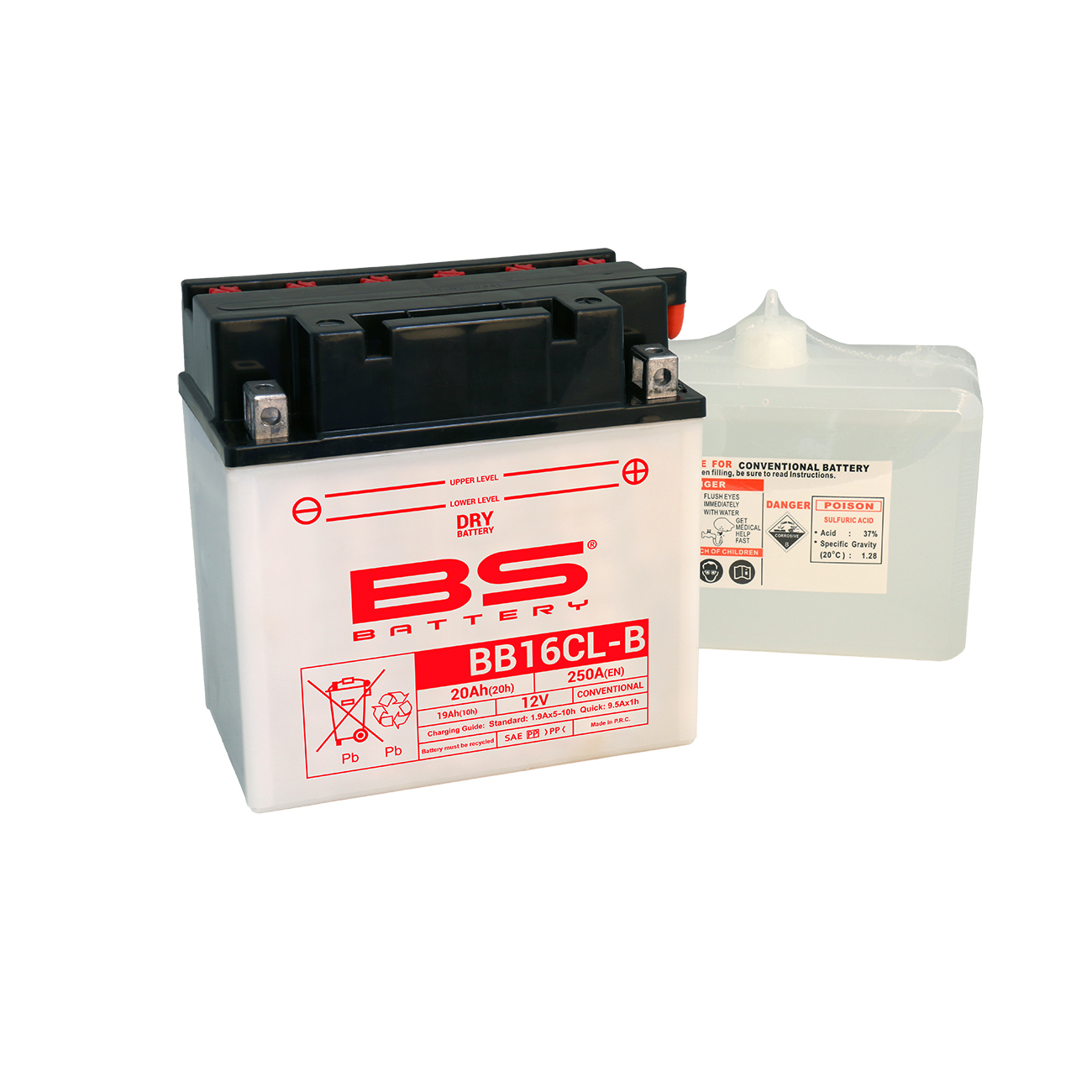

BS BATTERIES BB16CL-B (DC) Combi-Pack Dry Battery

• DRY-charged technology
• for initial filling
• Refilled with water if necessary
• No need to be recharged while stocked (if not activated)

BS Battery

With more than 400 battery types covering a wide range of powersport applications, its 6 subsidiaries around the world and its 5 production bases, BS BATTERY has become within a few years, one of the largest and most innovative powersport battery manufacturers, present in both OEM and OES fields.

Today, distributed in more than 80 countries, BS BATTERY is a reliable partner of the major distribution players and vehicle manufacturers.

---

Position:

This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.

Initial charging:

Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use.

Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office

Specially designed to offer good performance and reliability, this conventional battery is delivered with an acid pack, and must be activated before first use and has to be checked and maintained periodically. It must not be fitted at any angle other than vertical
Barcode: 3661453105796

BB16CL-B Battery (Dry range). This 12V 20Ah battery is a lead-acid flooded battery that must be filled before the first use, resulting in a much longer shelf life.
For box quantities please add multiples of 2.

Length:	175mm
Width:	100mm
Height:	175mm
CCA:	250
Capacity:	20
Polarity:	minus/plus
Type:	Dry
Voltage:	12v

Length:	175mm
Width:	100mm
Height:	175mm
CCA:	250
Capacity:	20
Polarity:	minus/plus
Type:	Dry
Voltage:	12v

Fitment Summary
Compatible with 225 models (yearly).

• Bombardier: DS 650 Baja X, DS 650X, Outlander 650HO, Outlander 800, Quest 500 FL Caliper, Quest 500 FR Caliper, Quest 650, Quest Max 650, Traxter 1000XL, Traxter 650 Max XT
• BRP: BH 2000 30 inch wheels, Commander 800DPS, Commander 800MAX, Commander 800 MAX DPS, Commander 800 MAX XT, Commander 800 Mossy Oak, Commander 800XT, Commander 800 XT-P, Defender 1000ATV, Defender 1000DPS, Defender 1000XT, Maverick 1000MAX, Maverick 1000 MAX DS, Maverick 1000 MAX X, Maverick 1000 MAX XRS, MR 570 Outlander, MR 650 Outlander, Next 2000 26 inch wheels, Shift 2000 29 inch wheels
• John Deere ATV: 4PX 675 Trail 9345, 855D, 855 D S4, Buck 500 FL Caliper, Buck 500 FR Caliper, Buck 650 FL Caliper, Buck 650 FR Caliper, Gator 855 XUV D, HPX 675 4x2 Petrol, HPX 675 9446, Trail Buck 500 FL Caliper, Trail Buck 500 FR Caliper, Trail Buck 650 FL Caliper, Trail Buck 650 FR Caliper, TX 675 9461, X 590i, X 590iS4, XUV 550 Gator, XUV 560, XUV 625 Gator, XUV 825 Gator i, XUV 825i, XUV 850 Gator
• Kawasaki: KAF 450 Mule, KAF 540 Mule, KAF 610 Mule, KAF 620 Mule, KDX 250B1, KDX 250B2, KDX 250B3, KDX 250B4, KDX 250C1, KDX 250C2, KDX 250C3, KDX 250 D E1, KDX 250 D E2, KDX 250 D E3, KDX 250 D E4, KDX 250 D E5, KDX 250K
• Yamaha: EX 1050 Rec Lite, JB 1050 X jet Blaster, VX 1050 Jet Ski
